DMG Turn-Mill Center GMX-200L

Specifications

turning diameter 560 mm
turning length 1070 mm

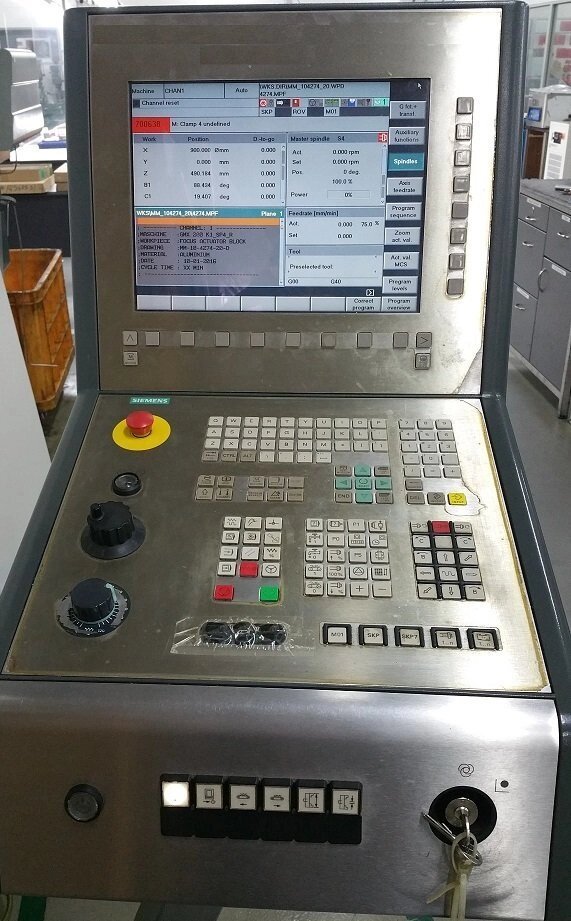

control Siemens 840D SL
tool taper Capto C6
tool magazine with 46 ATC

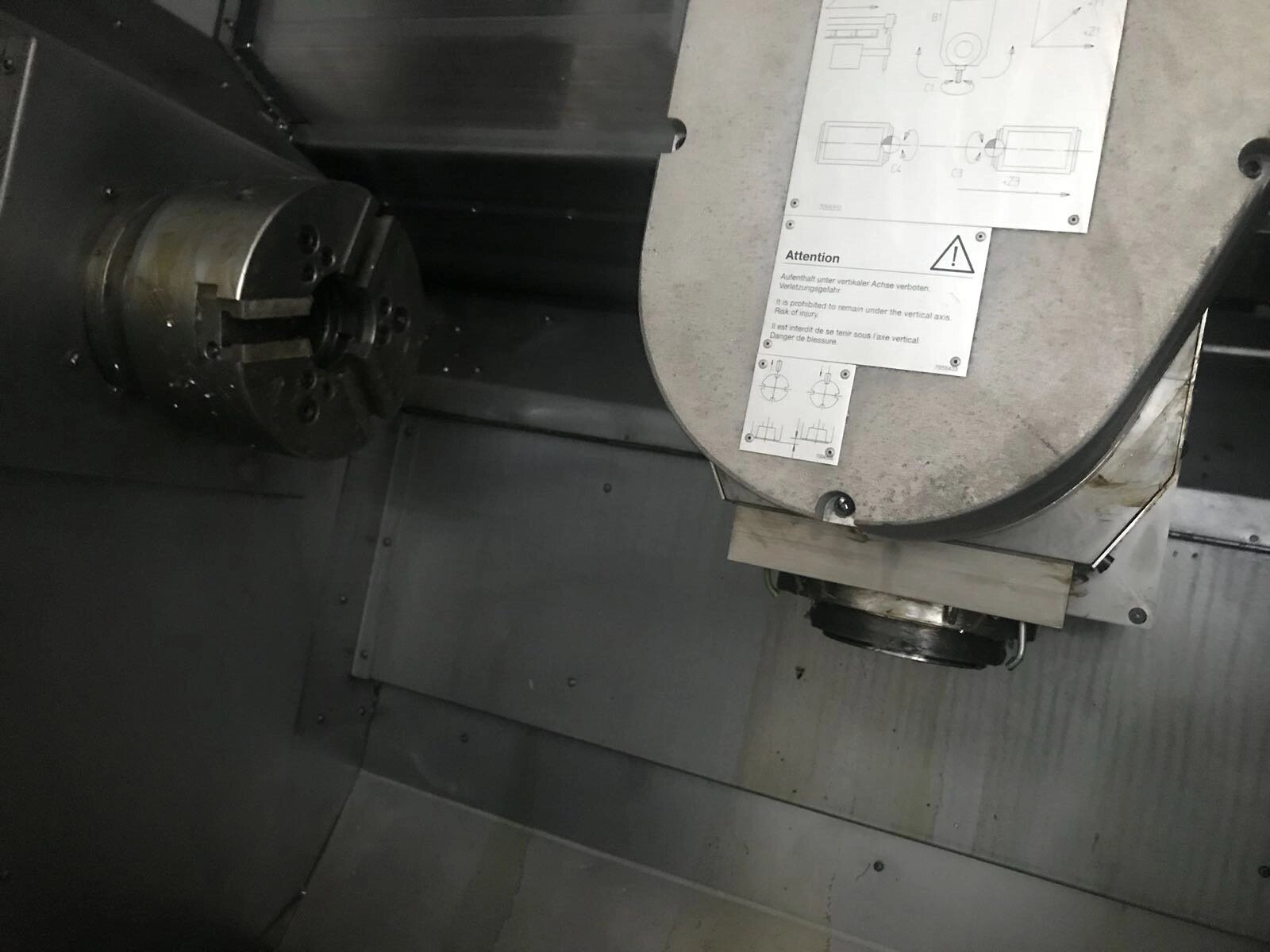

Main spindle ISM90
spindle passage 92 mm
turning speeds 4.000 U/min
power capacity at 60% / 100 % load 45 / 36 KW
torque 600 / 750 Nm
clamping chuck diameter 200 – 315 mm
counter-spindle IMS65
spindle passage 65 mm
turning speeds 5000 U/min
power capacity at 60% / 100 % load 37 / 25 KW
torque 270 / 370 Nm
clamping chuck diameter 200 – 315 mm
spindle distance 1300 mm
Travel:
x-axis 485 mm
z-axis 1070 mm
y-axis +/- 80 mm
rapid traverse X/Y/Z 40/24/70 m/min
feed capacity X/Y/Z 7/11/7,5 kN
b-axis +/- 120 x 0,001 °
slewing speed 220 U/min
torque 5720/2860 Nm
milling head speed 10 – 12000 U/min
power capacity at 60% / 100 % load 22/13,2 KW
