Mazak Universal Turn-Mill Center
Integrex 200Y

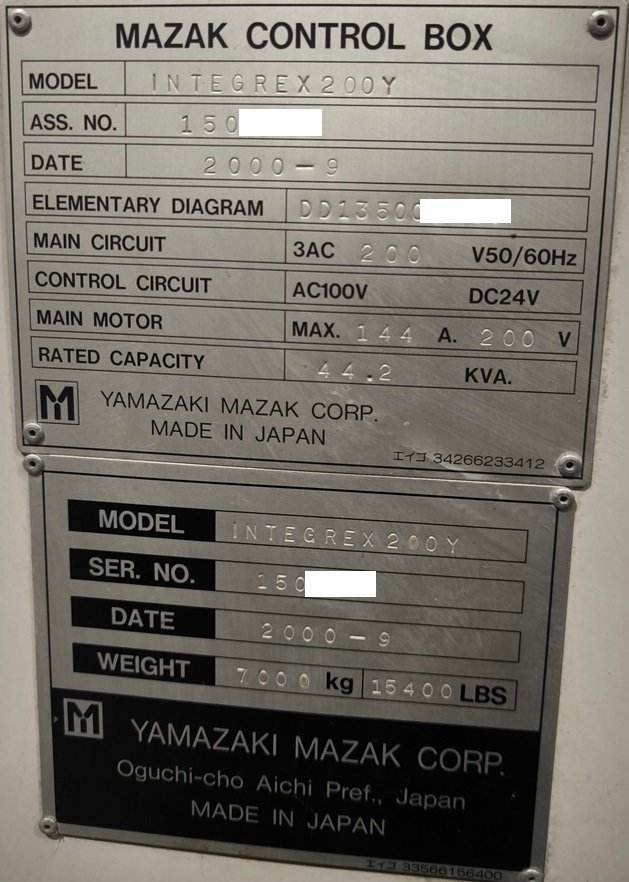

Year Mfg : 2000
Max diameter of rotation: 540 mm
Max diameter of work: 540 mm
Max length of work: 1029 mm
Swing axis X: 530 mm
Swing axis Y: +/- 140 mm
Swing axis Z: 1065 mm
Rapid positioning axis C: 400 RPM
Spindle speed: 30-5000 RPM
Spindle attack: A2 6”
Spindle hole: 61 mm
Tailstock: 870 mm

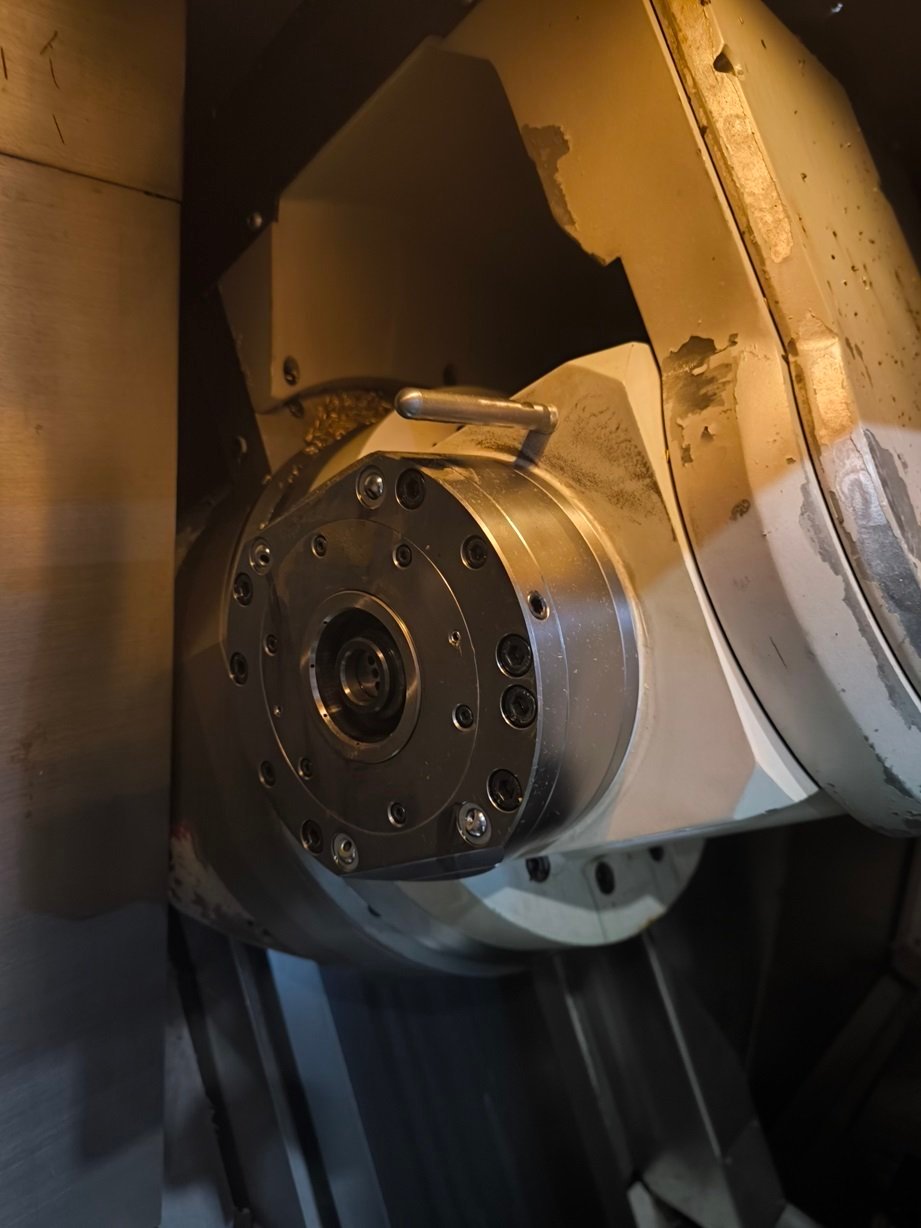

Spindle: 140 mm

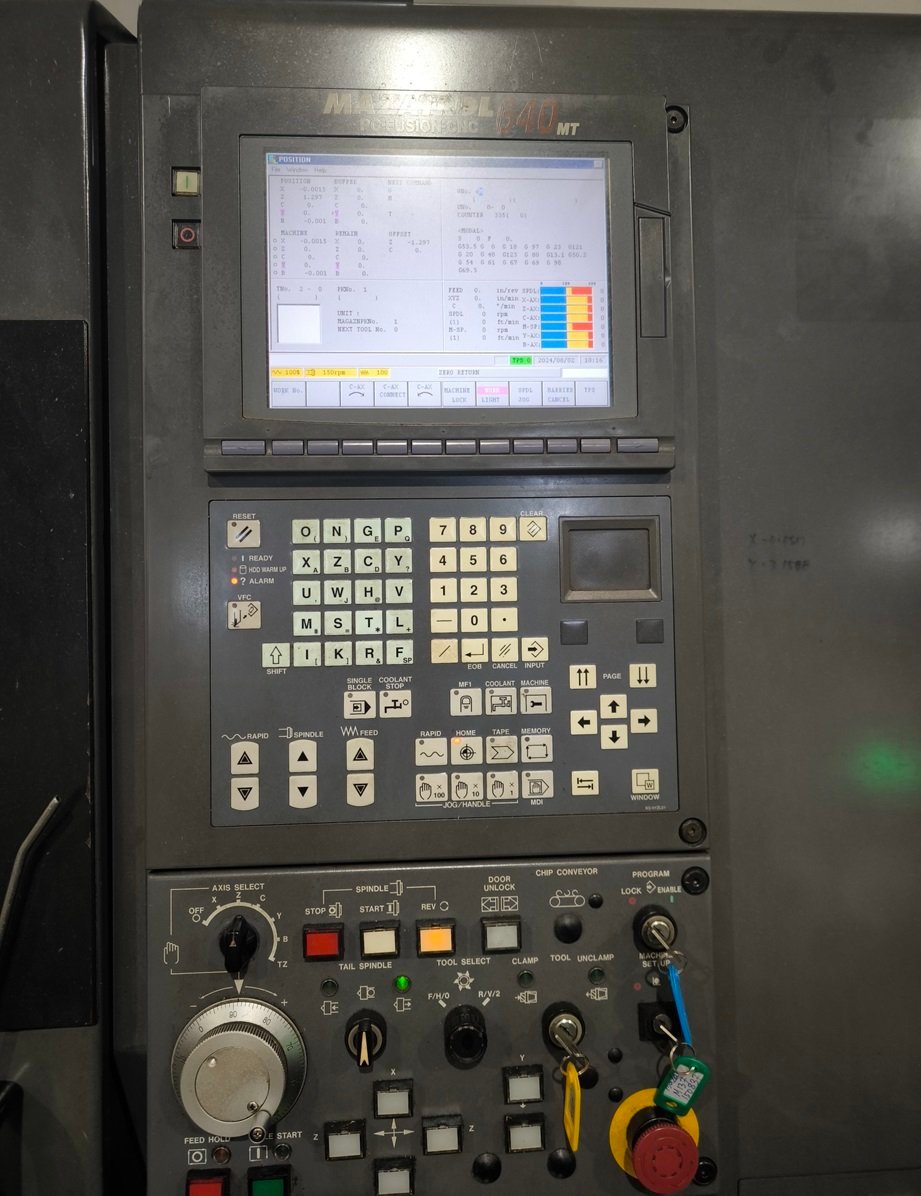

CNC: MAZATROL FUSION 640

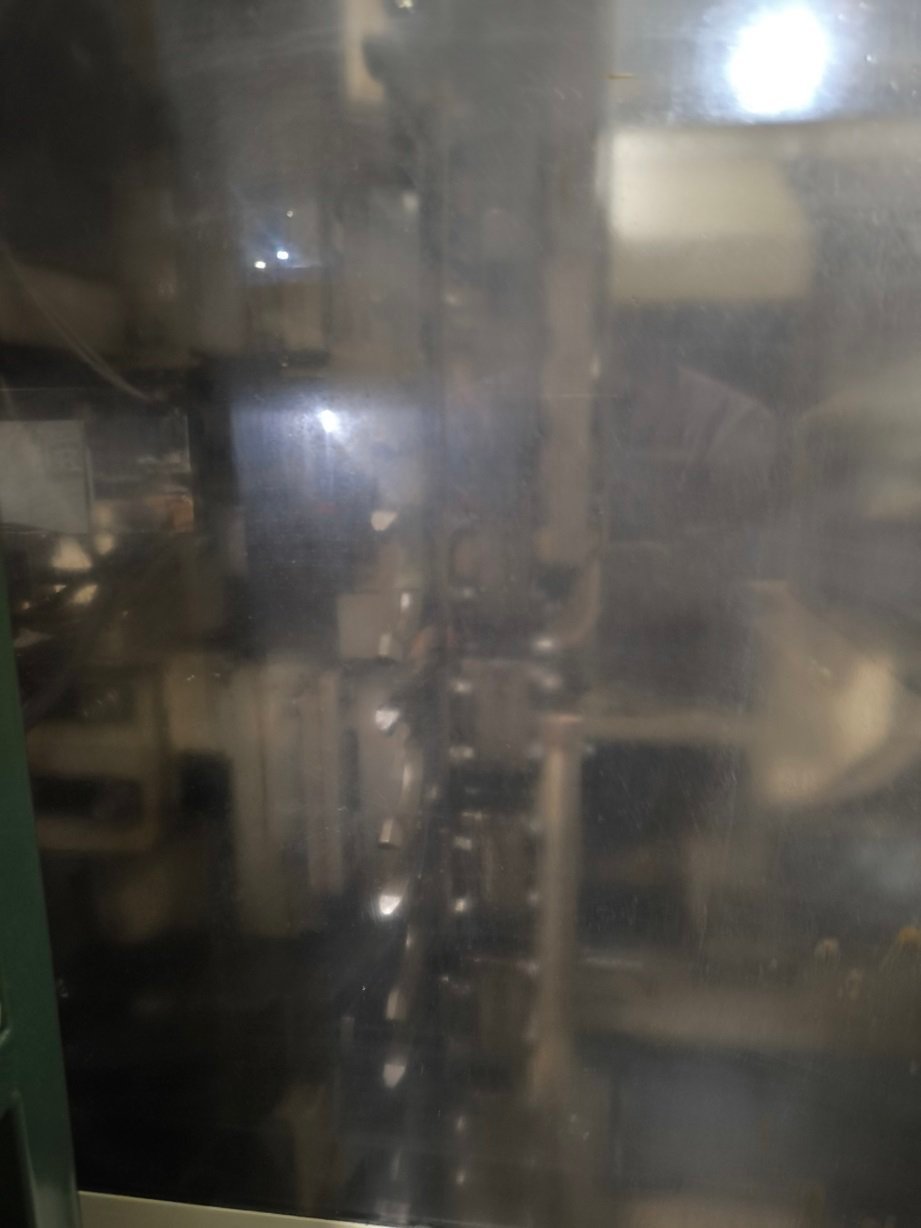

Turret with ATC: 30 tools
Tool taper: HSK-A63

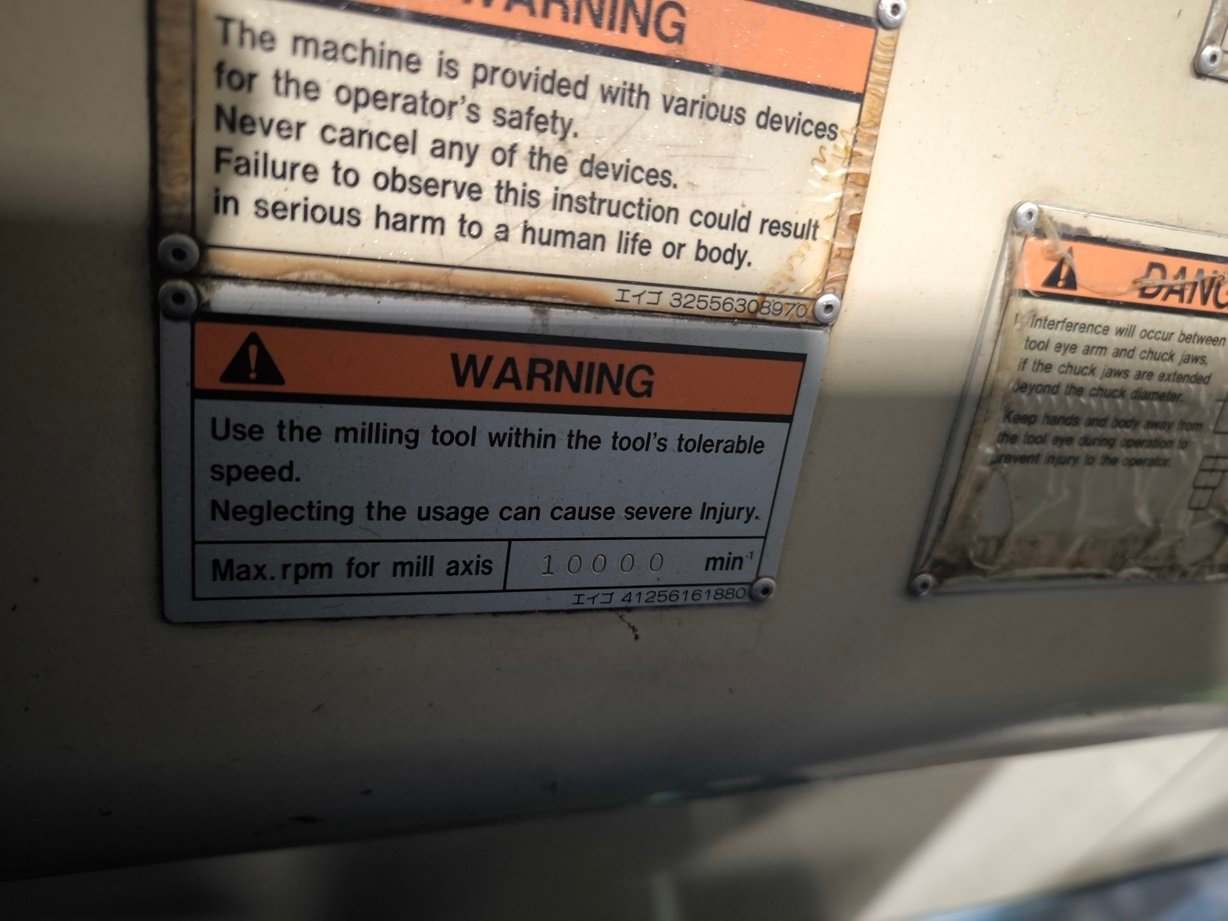

Swing speed of motorized tools: 15-10,000 RPM
Motor power of motorized tools (10 min work.): 7.5 kW
Positioning Axis B: 0.001°
Location: Singapore
Specifications
Category: CNC Lathes
